ECO-WHATS 30 x 40
INCLUDED COMPONENTS

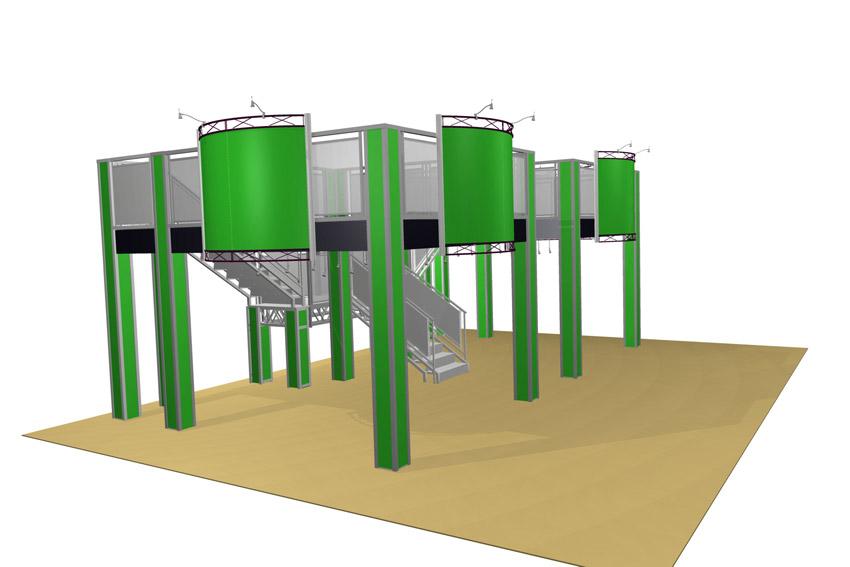

Structural Truss System
Stairs
Wall Frames & Doors
Rails
Deck Boards
Lights
Ceilings
1/4” Frosted Plex Rail Infills
Hyperlite Signs
Unprinted Sintra Infills
Wall Panels
7 Crates
DIMENSIONS & WEIGHT
- Top Deck Footprint: 13’5″ x 13’5″ (x2)
- Top Deck Weight Limit: 125lbs. / sq. ft.
- Top Deck Max Occupancy: 9 people per deck
- Overall Height: 13’1″
- Ceiling Height: 8’7″
- 30 x 40 space
- Approx. 10,000 lbs.
OPTIONAL ADDONS
- Custom color (printed) column infills
– $8,480 - Custom color (printed) large back panels
– $1,440 - EZ6 rectangle designer counters
– $1,909 / ea. - Column mount swivel LCD mounts
– $292 / ea. - Column mount fixed LCD mounts
– $251 / ea. - 6’ straight Hyperlite sign
– $2,458 / ea. - Laptop shelves
– $367 / ea. - LCD mount
– $584 / ea. - EZ612 coffee table
– $1,681 / ea. - 9’ long EZ612 coffee bar
– $5,512 / ea. - Individual cases are available
– call for quote
SHIPPING SPECS
- Ships in 7 crates
- Approx. 4′ x 8′ x 4′ / ea.
DOCUMENTS

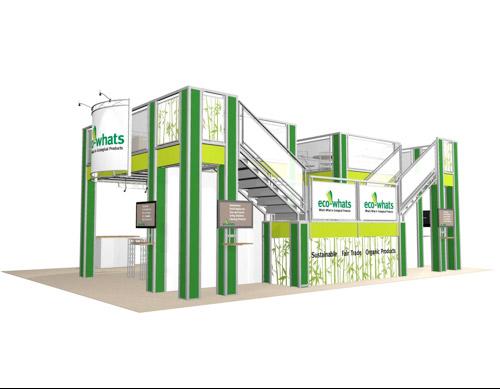

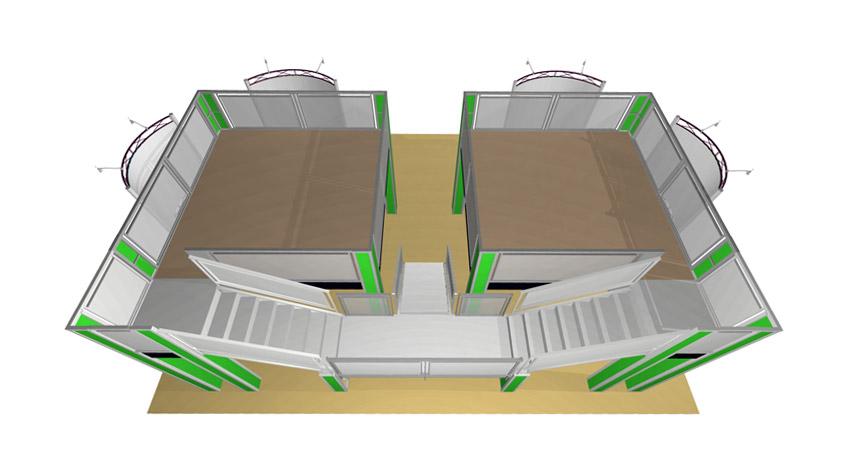

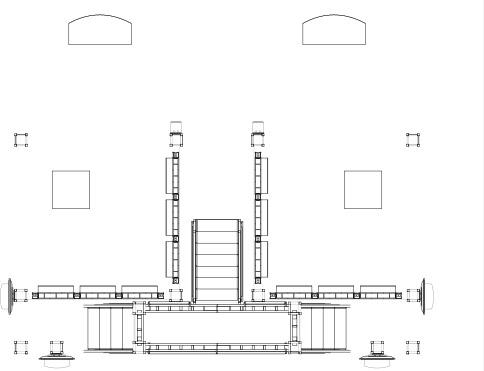

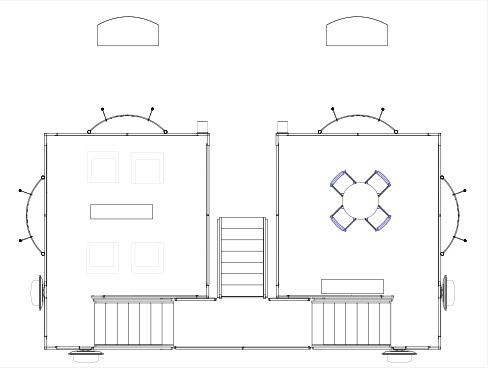

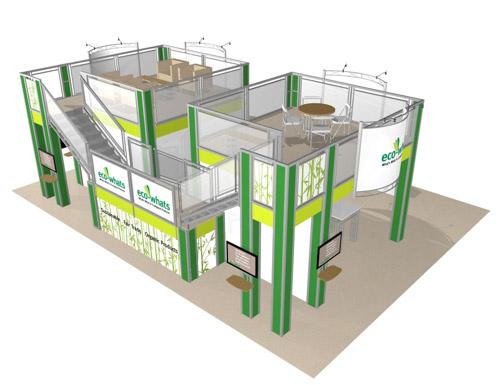

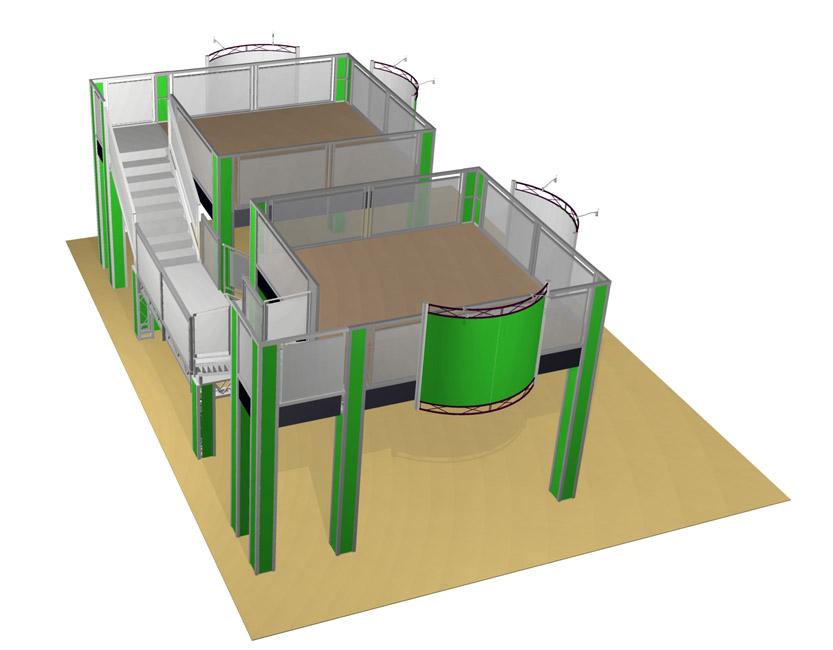

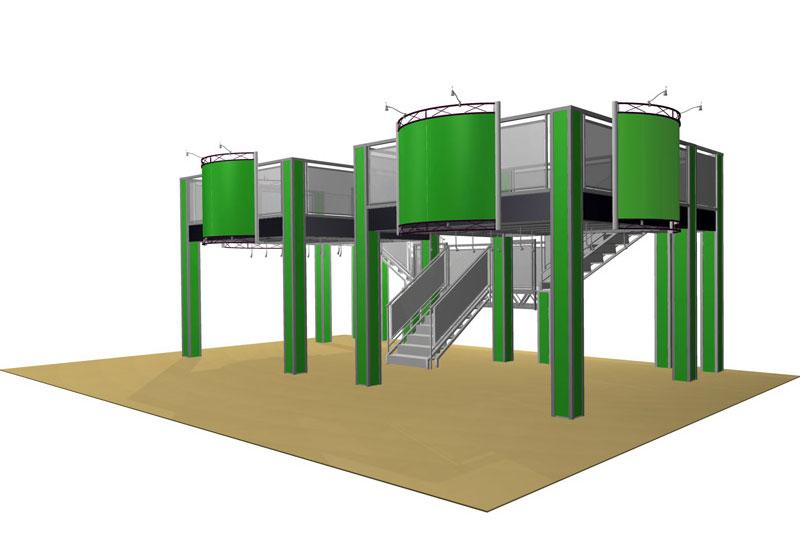

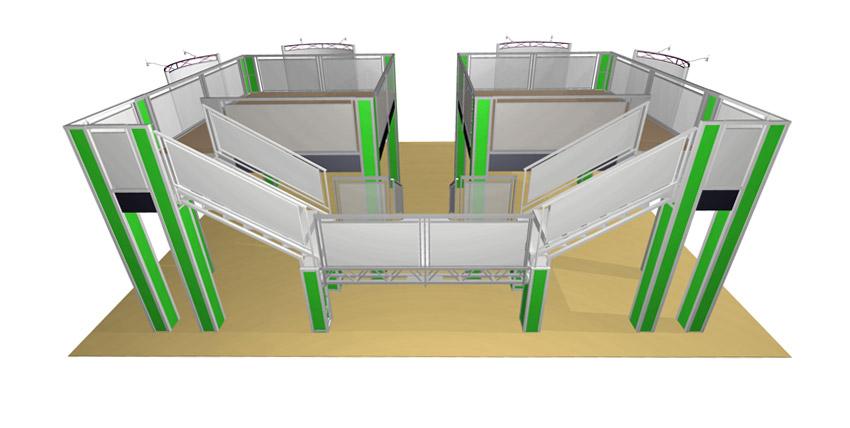

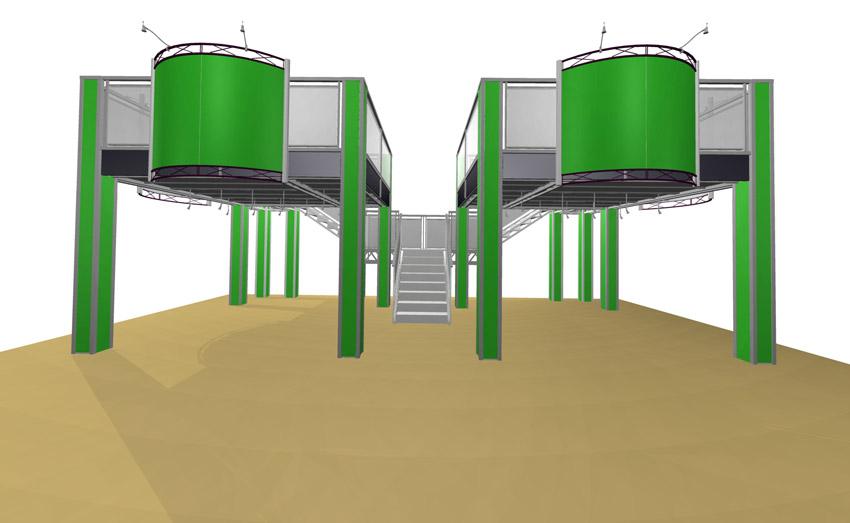

The Eco-whats design utilizes two 13 x 13 decks with a split staircase. Since the decks are separate, they each have the occupancy of a deck with one staircase. This is an excellent design for companies with 2 distinct product lines. Downstairs each side is kitted out with EZ6 shelving and a product table! 4 demo stations are positioned on the legs on the sides and back. Access storage is under the large landing. ID is accomplished with four bowed Hyperlite signs and large graphic panels on the back.
Note: This kit has a covered area exceeding 300 sq. ft. In some venues such as the LVCC, an after-hours fire watch will be required by the facility once the deck is installed and until it is removed.
• All lights shown are included in the full kit

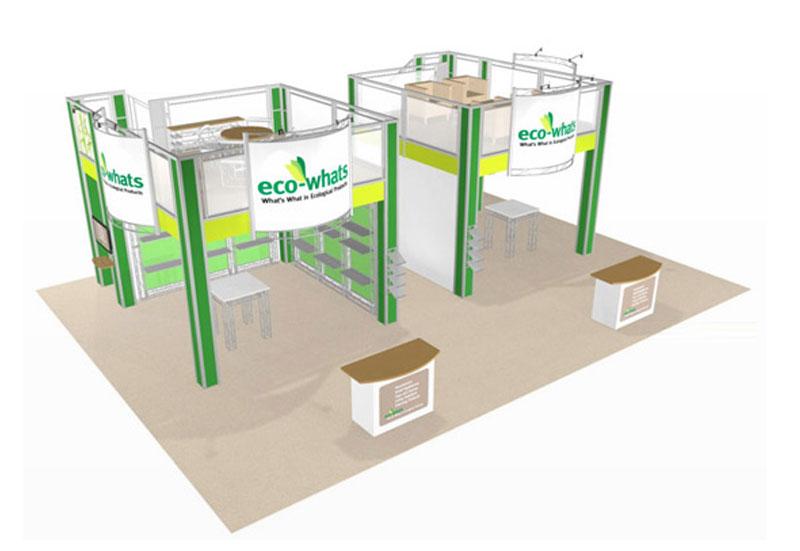

ECO-WHATS 30’ x 40’ – ADVANCED KIT
Call Us for a Quote Today!
INCLUDED COMPONENTS
Structural Truss System
Stairs
Wall Frames & Doors
Rails
Deck Boards
Ceilings w/ Lights
1/4” Frosted Plex Rail Infills
Hyperlite Signs w/ Fabric Graphics
Printed Sintra Infills & Wall Panels
1 36” diameter meeting table
4 curve back pack chairs
2 custom locking freestanding counters
4 EZ6 11’ wide shelving units w/ fabric back panels
4 leather lounge chairs
2 EZ6 product tables
1 EZ6-12 coffee table
(1) 5’ EZ612 side table w/ shelf
(2) 4-shelf lit racks
2 column mount workstations
9 Crates
DIMENSIONS & WEIGHT
- Top Deck Space: 13’1″ x 13’1″ (x2)
- Top Deck Footprint: 13’5″ x 13’5″ (x2)
- Top Deck Wight Limit: 125lbs. / sq. ft.
- Top Deck Max Occupancy: 9 people per deck
- Overall Height: 13’1″
- Ceiling Height: 8’7″
- 30 x 40 space
- Approx. 10,000 lbs.
OPTIONAL ADDONS
- Column mount swivel LCD mounts
– $292 / ea. - Column mount fixed LCD mounts
– $251 / ea. - Laptop shelves
– $367 / ea. - LCD mount
– $584 / ea. - 9’ long EZ612 coffee bar
– $5,512 / ea. - Individual cases are available
– call for quote
SHIPPING SPECS
- Ships in 9 crates
- Approx. 4′ x 8′ x 4′ / ea.
DOCUMENTS
The Eco-whats design utilizes two 13 x 13 decks with a split staircase. Since the decks are separate, they each have the occupancy of a deck with one staircase. This is an excellent design for companies with 2 distinct product lines. Downstairs each side is kitted out with EZ6 shelving and a product table! 4 demo stations are positioned on the legs on the sides and back. Access storage is under the large landing. ID is accomplished with four bowed Hyperlite signs and large graphic panels on the back.
Note: This kit has a covered area exceeding 300 sq. ft. In some venues such as the LVCC, an after-hours fire watch will be required by the facility once the deck is installed and until it is removed.
• All lights shown are included in the full kit
